When is SWA cable used?

SWA cable, or Steel Wire Armoured cable, is a type of power cable that is commonly used for underground electrical installations. It is made up of several layers of material, including copper or aluminum conductors, insulation, bedding, steel wire armoring, and an outer sheath.

The steel wire armoring provides mechanical protection to the cable, making it suitable for use in areas where it may be subject to damage from rocks, construction equipment, or other hazards. The armoring also helps to protect the cable from moisture, which can be a problem in underground installations.

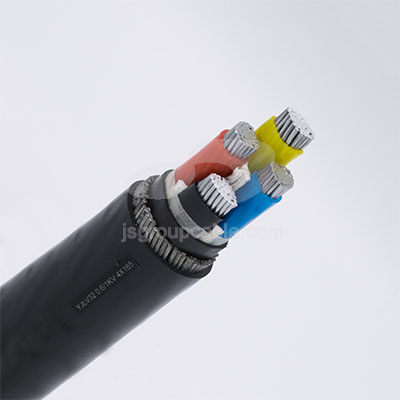

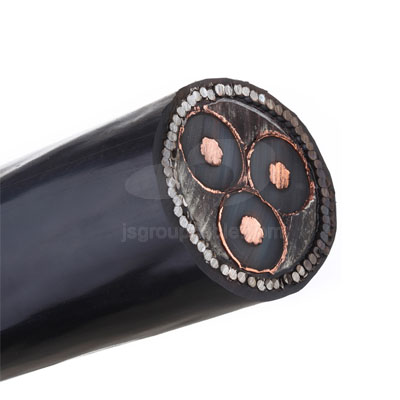

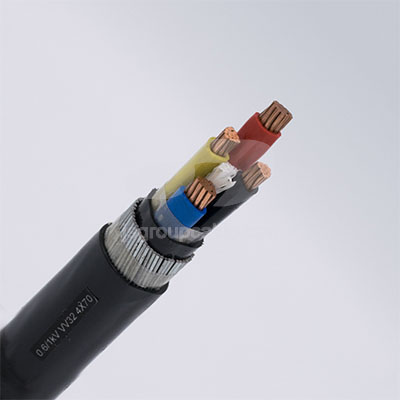

The basic structure of SWA cable

Components	Effect
Conductor	SWA cables have a copper or aluminum conductor that carries the electrical current. The size of the conductor varies depending on the power rating and the application of the cable.
Insulation	The conductor is covered with a layer of insulation to prevent electrical leakage and to protect the conductor from moisture and other environmental factors.
Bedding	A layer of bedding is applied over the insulation to provide extra protection to the cable.
Steel wire armoring	A layer of steel wire armor is then wrapped around the cable, providing mechanical protection against physical damage, impact, and compression.
Outer Sheath	The final layer of the SWA cable is the outer sheath, which provides an extra layer of protection against moisture, abrasion, and other environmental factors. The outer sheath is typically made of PVC or another suitable material.

When is SWA cable used?

SWA (Steel Wire Armoured) cable is typically used in outdoor and underground electrical installations where it is necessary to provide additional mechanical protection against damage, such as from impact or digging.

The steel wire armouring provides a protective layer around the insulation and conductors of the cable, making it more resistant to damage and ensuring that the cable remains functional and safe to use even in challenging environments.

SWA cables are commonly used in industrial applications, construction sites, and in outdoor installations such as street lighting or traffic signals. They are also used in underground applications such as power distribution networks, as the armoured construction of the cable provides additional protection against the elements and the risk of damage from excavation work.

Some of the common applications of SWA cables include:

1.Power transmission and distribution:

SWA cables are used to distribute electrical power over long distances from power plants or substations to cities, towns and industrial facilities. They are also used for interconnecting power generators and transformers.

2.Industrial applications:

SWA cables are commonly used in industrial applications, such as in manufacturing plants, refineries, and mining sites. They are used for powering machinery, lighting, and other electrical equipment.

3.Construction sites:

SWA cables are widely used in construction sites for providing temporary power to the site. They are used to power lighting, tools and other equipment on the site.

4.Outdoor installations:

SWA cables are used in outdoor installations such as street lighting, traffic signals, and CCTV systems. They provide a robust and weather-resistant solution for transmitting power in outdoor environments.

5.Underground applications:

SWA cables are often used in underground installations such as power distribution networks, where they provide additional mechanical protection against damage from excavation work.

6.Marine and offshore applications:

SWA cables are commonly used in marine and offshore applications such as oil rigs, ships, and offshore wind farms. They are designed to withstand harsh weather conditions and the corrosive effects of saltwater.

7.Renewable energy:

SWA cables are used in renewable energy applications such as solar and wind power installations. They are used to transmit power from the solar panels or wind turbines to the grid or to energy storage systems.

8.Data transmission:

SWA cables can also be used for data transmission, such as in computer networks and telecommunications. They are used to transmit data signals over long distances, providing a reliable and secure transmission medium.

The robust construction and mechanical protection provided by the steel wire armouring of SWA cables make them ideal for a wide range of applications where reliability and durability are key considerations.

Advantages of SWA cables:

SWA (Steel Wire Armoured) cables have several advantages over other types of cables:

1.Mechanical Protection

SWA cables have a layer of steel wire armor which provides excellent mechanical protection against physical damage, making them suitable for use in harsh and demanding environments.

2.Moisture and Chemical Resistance

SWA cables are designed to withstand exposure to moisture and chemicals, making them ideal for use in wet or corrosive environments.

3.High Current Capacity

SWA cables have a high current carrying capacity, which makes them ideal for use in high-power applications such as industrial and commercial installations.

4.Fire Resistance

SWA cables are fire-resistant and can withstand high temperatures, making them ideal for use in high-risk areas such as oil and gas refineries.

5.Longevity

SWA cables are designed to last for many years, providing a reliable and cost-effective solution for electrical installations.

SWA cables are a durable, robust, and reliable choice for a wide range of applications where mechanical and environmental protection is essential.When choosing SWA cable, you should choose the appropriate cable in combination with your own usage scenarios., it is important to consider the voltage, current capacity, size, environmental conditions, application, and compliance with industry standards to ensure a safe and reliable electrical installation.
