What is 1/0 Welding Cable?

1/0 welding cable is a type of electrical cable that is commonly used for welding applications. The “1/0” designation refers to the size of the cable, which is measured in American Wire Gauge (AWG) units. 1/0 cable has a diameter of approximately 0.53 inches and is capable of carrying high currents up to 200 amps.

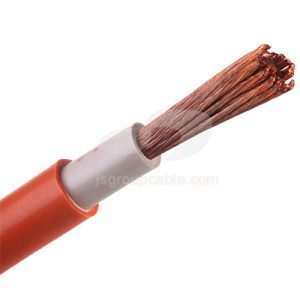

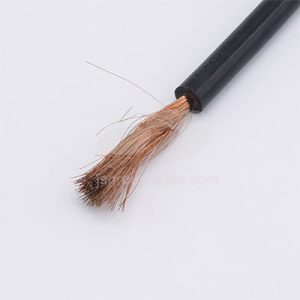

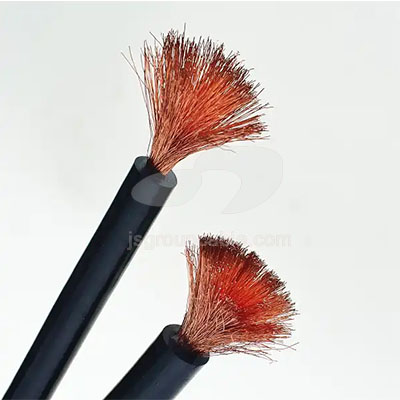

1/0 welding cable is typically made with finely stranded copper wire, which makes it more flexible and easier to handle than solid wire. The insulation used on the cable is typically a high-quality synthetic rubber that is resistant to cuts, abrasion, and heat. The cable is also designed to be oil-resistant, which makes it suitable for use in welding environments where oil and other contaminants may be present. We introduced 2/0 Welding Cable in the previous article, so let’s learn about 1/0 Welding Cable in detail today!

This type of cable is often used in heavy-duty welding applications, such as those found in the construction and manufacturing industries. It is also used in automotive and marine applications where high-current electrical systems are needed.

Features of 1/0 welding cable

1/0 welding cable has several features that make it well-suited for welding and other high-current applications:

1.High current capacity

It can handle up to 200 amps of current, which makes it suitable for heavy-duty welding applications.

2.Flexibility

The finely stranded copper wire used in 1/0 welding cable makes it more flexible than solid wire, which makes it easier to handle and route in tight spaces.

3.Heat resistance

The insulation for this type of cable is usually a high-quality synthetic rubber that can withstand high temperatures without melting or degrading.

4.Abrasion resistance

Its insulation is also cut and abrasion resistant, helping to prevent damage to the cable in harsh environments.

5.Oil resistance

Designed to be resistant to oil and other contaminants, which makes it suitable for use in welding environments where these substances may be present.

6.Durability

1/0 welding cable is built to withstand the rigors of heavy-duty use and is designed to last for years without requiring replacement.

7.Voltage rating

It is typically rated for use at voltages up to 600 volts, which makes it suitable for a wide range of welding and electrical applications.

8.Water resistance

The insulation is often designed to be water-resistant, which helps to prevent damage to the cable in wet environments.

9.UV resistance

Some types of 1/0 welding cable may be designed with UV-resistant insulation, which helps to prevent the cable from degrading when exposed to sunlight.

10.Color-coded

This cable is often available in a variety of colors, which makes it easy to identify and distinguish between different cables in a welding or electrical system.

11.Easy to terminate

It is often designed with a flexible jacket that is easy to strip and terminate, which helps to speed up installation and reduce labor costs.

12.Wide temperature range

It is typically rated for use in temperatures ranging from -40°C to 90°C, which makes it suitable for use in a wide range of environments.

Which heavy machinery can 1/0 welding cable be used on?

1/0 welding cable is commonly used on a variety of heavy machinery that require high-current electrical power.

1.Welders

It is commonly used in welding applications to carry high currents between the welding machine and the workpiece.

2.Generators

This cable is also used to connect generators to power distribution panels or other equipment that requires high current.

3.Cranes

Many types of cranes require high-current electrical power to operate, and 1/0 welding cable is often used to supply power to the crane motor.

4.Excavators

Excavators use a variety of electrical components that require high current, and this cable can be used to supply power to these components.

5.Mining equipment

Mining equipment such as bulldozers, loaders, and haul trucks require high-current electrical power, and 1/0 welding cable is often used to supply power to these machines.

6.Agricultural machinery

Agricultural machinery such as tractors and combines require high-current electrical power to operate, and 1/0 welding cable can be used to supply power to these machines.

Overall, this cable is a versatile and durable cable that can be used on a wide range of heavy machinery to supply high-current electrical power.

What size is 1/0 welding cable?

1/0 welding cable typically has a cross-sectional area of about 53.5 mm² (0.0832 square inches) and a diameter of approximately 12.7 mm (0.5 inches). However, it’s worth noting that the exact specifications can vary depending on the manufacturer and the specific type of welding cable.

How many amps can 1/0 welding cable carry?

1/0 welding cable is typically rated to carry up to 200-250 amps of current. However, the actual capacity of the cable will depend on various factors such as the length of the cable, the temperature of the cable, the type of insulation, and the ambient temperature. It is always important to consult the manufacturer’s specifications or a qualified electrician to ensure that the cable is suitable for the specific application and that it is installed correctly.

Based on the above introduction, let us know more about 1/0 welding cable, so when purchasing, you can refer to its introduction to choose the appropriate size. I hope my article can help you.
