Two-Core Concentric Cable

1.Application Of Two-core Concentric Cable

Two-core concentric cable are commonly used in various applications, including:

Low voltage power distribution:

Two-core concentric cable is commonly used in low voltage power distribution systems, such as in buildings and factories, to distribute power to various loads. The shielding provided by the concentric conductor helps to minimize interference and noise, ensuring a stable and reliable power supply.

Telecommunications:

It is used in telecommunications networks to transmit voice, data, and video signals over long distances. The cable’s design helps to reduce the effects of interference, ensuring that the signal remains clear and stable.

Broadcast:

Two-core concentric cable is used in the broadcast industry to transmit audio and video signals between different production equipment and studios. The shielding provided by the concentric conductor helps to prevent interference from other electronic devices and equipment.

Control and instrumentation:

It is used in industrial control and instrumentation systems to transmit signals between sensors, controllers, and other equipment. The shielding provided by the concentric conductor helps to protect the signal from interference and noise, ensuring accurate measurements and control.

Security systems:

This cable is used in security systems, such as CCTV cameras and access control systems, to transmit video and data signals over long distances. The shielding provided by the concentric conductor helps to minimize interference and noise, ensuring a stable and reliable signal.

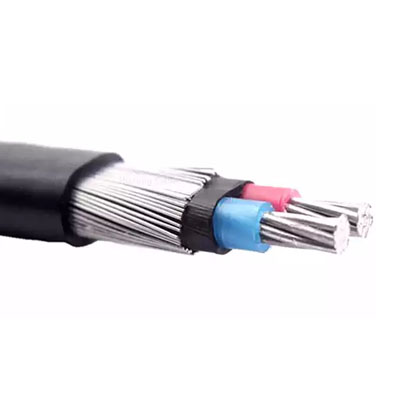

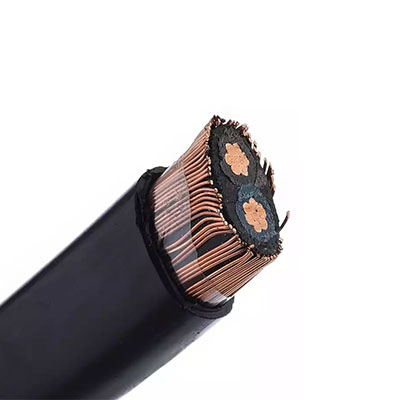

2.Construction Of Two-core Concentric Cable

Conductor: Aluminum/Copper Conductor
Insulation: XLPE
Core: Two core
Cable Inner Sheath: PVC
Concentric Conductor Layer: Copper / Aluminum
Cable Tape: No-absorbent Material or OEM
Jacket:XLPE

3.Advantages of Two-core concentric cable

Two-core concentric cables offer several advantages over other types of cables. Some of the advantages include:

Excellent shielding:

The concentric conductor provides excellent shielding against electromagnetic interference (EMI) and radio frequency interference (RFI), which can cause noise and signal distortion. This makes two-core concentric cables ideal for use in applications where interference is a concern.

High reliability:

Concentric cables are designed to be highly reliable and have a long lifespan. They are resistant to physical damage, moisture, and other environmental factors that can affect their performance.

Versatility:

Two-core concentric cables can be used in a variety of applications, including low voltage power distribution, telecommunications, broadcast, control and instrumentation, and security systems. They are available in different sizes and voltage ratings to meet specific application requirements.

Ease of installation:

Concentric cables are easy to install and terminate, which reduces installation time and costs. They are also lightweight and flexible, making them easy to handle and route through tight spaces.

Cost-effective:

Two-core concentric cables are generally less expensive than other types of cables with similar performance characteristics, making them a cost-effective solution for various applications.
