Concentric Cable

1.Application Of Concentric Cable

Concentric cables are commonly used in various applications, including:

Telecommunications:

Concentric cables are used in telecommunications networks to transmit voice, data, and video signals over long distances. The cable’s design helps to reduce the effects of interference, ensuring that the signal remains clear and stable.

Broadcast:

Concentric cables are used in the broadcast industry to transmit audio and video signals between different production equipment and studios. The shielding provided by the concentric conductor helps to prevent interference from other electronic devices and equipment.

Control and instrumentation:

Concentric cables are used in industrial control and instrumentation systems to transmit signals between sensors, controllers, and other equipment. The shielding provided by the concentric conductor helps to protect the signal from interference and noise, ensuring accurate measurements and control.

Medical equipment:

Concentric cables are used in medical equipment, such as electrocardiogram machines, to transmit signals between sensors and monitoring equipment. The shielding provided by the concentric conductor helps to prevent interference from other medical equipment and devices.

Power distribution:

Concentric cables can also be used in power distribution systems to transmit low voltage power over short distances. The shielding provided by the concentric conductor helps to reduce the effects of electromagnetic interference, which can cause power loss and damage to sensitive equipment.

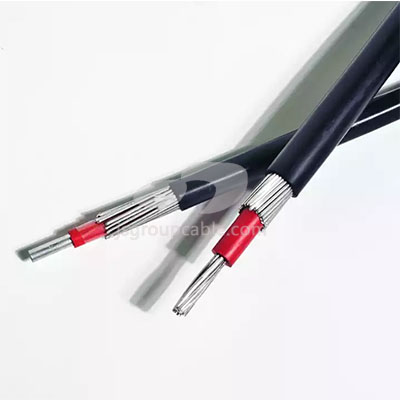

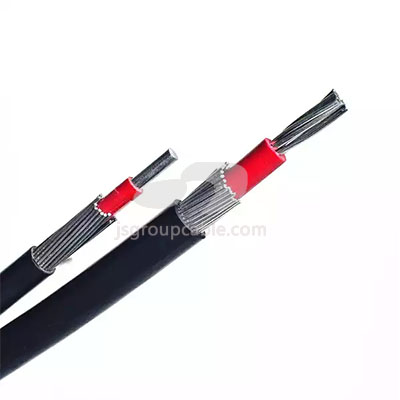

2.Construction Of Concentric Cable

(1).Solid or stranded aluminium conductor.

(2).Insulation with XLPE or PE or PVC.

(3).For two conductor cable, it is applied a helical mesh of copper wires over the central conductor.

(4).For three or four conductors cable , parallel conductor or stranded conductor.

(5).PVC filler.

(6).Helical mesh of copper wires.

(7). Wrapping tape.

(8).Black color jacket of PE or PVC.

3.Standards Of Concentric Cable

ASTM 、IEC、 BS and so on.

4.Voltage Of Concentric Cable

600/1000v

5.Bending Radius Of Concentric Cable

Single core: 20D ± 0.05, multi-core: 15D ± 0.05

6.Temperature Rating Of Concentric Cable

0°C to 70°C
